2-通道模拟量输入

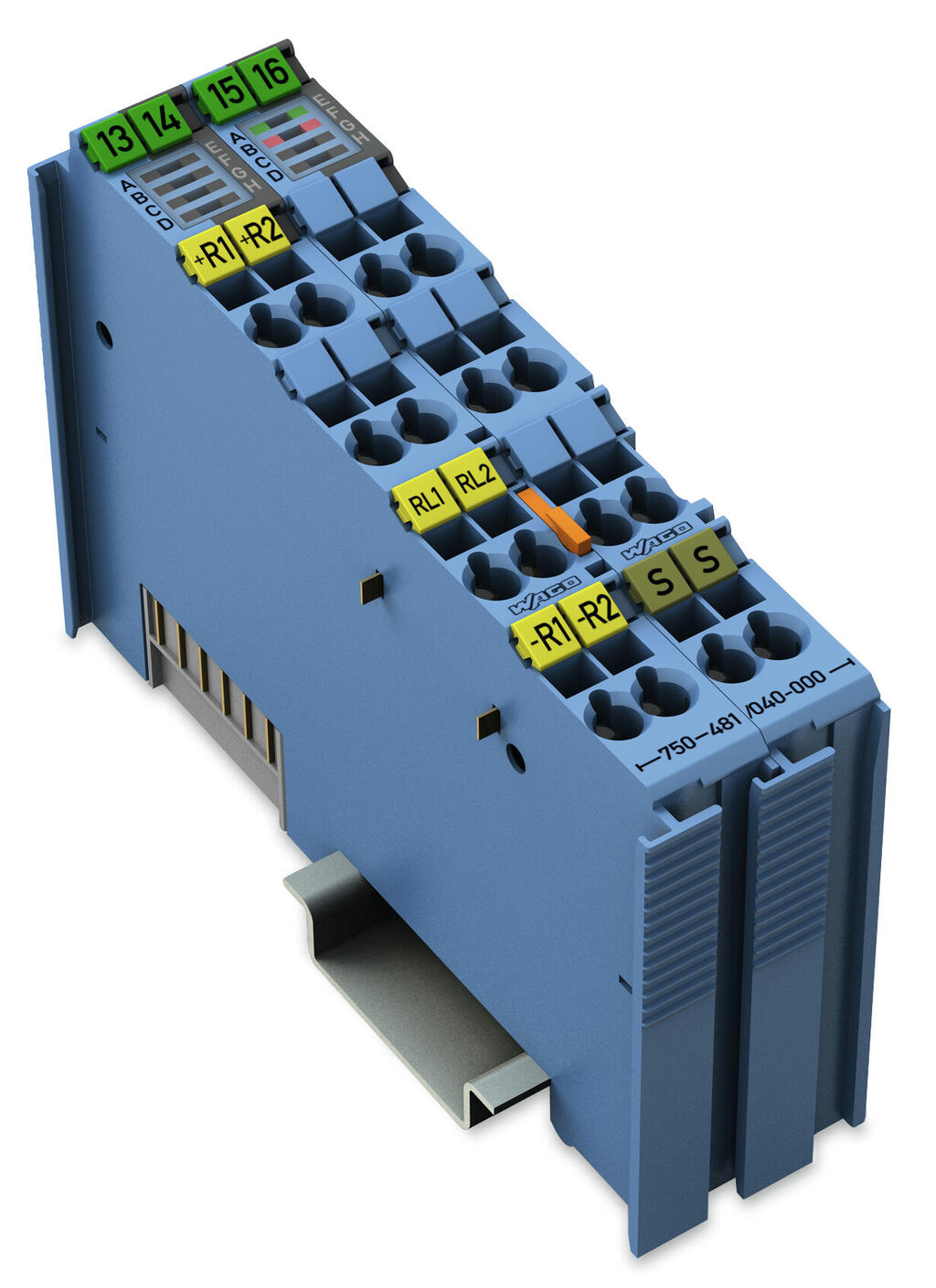

This analog input module directly connects to Pt and Ni resistance sensors or potentiometers located in hazardous areas of Zones 0 and 1.

The WAGO I/O System 750 XTR must be installed either in Zone 2 or in a non-hazardous area. The 24 V supply is derived from the module's power jumper contacts.

The shield directly connects to the DIN-rail.

Indicators:

• Green LED (availability ON/OFF)
• Red LED (short circuit, wire breakage, measurement range overflow/underflow)

Field and system levels are electrically isolated.

The device is ideal for operation in extreme environments thanks to:

• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance
