2-通道模拟量输入

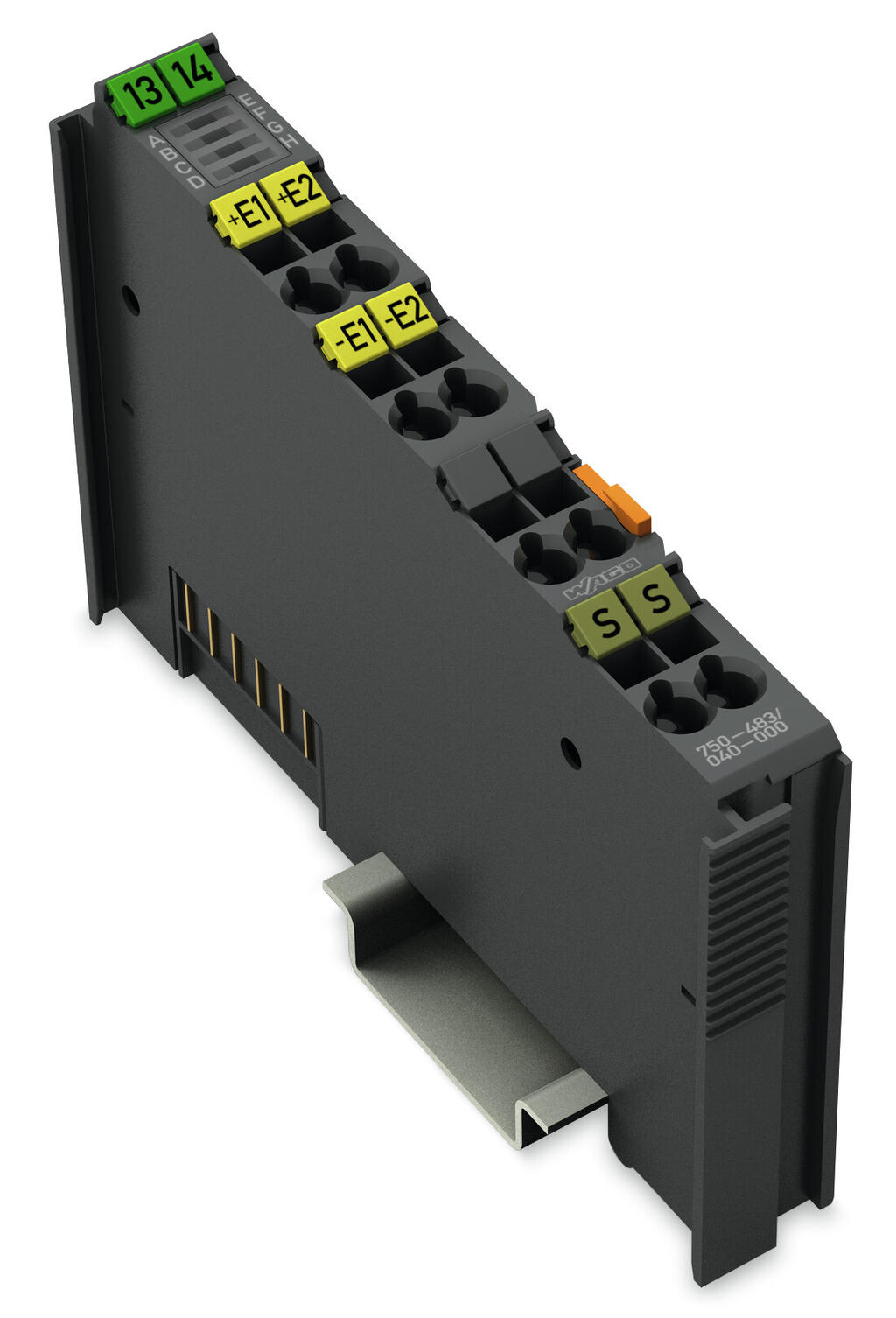

This analog input module processes differential signals ranging from 0 to 30 VDC.

The input signal of each channel is electrically isolated and is transmitted with a resolution of 14 bits.

The system supply powers the module.

The shield directly connects to the DIN-rail.

• Measured value acquisition: Time synchronous within the module
• Measurement range overflow/underflow: Status byte and LED
• Conversion method: SAR (Successive Approximation Register)
• Operating mode: Continuously sampling (default)
• Protection: RC circuit

The device is ideal for operation in extreme environments thanks to:

• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance
