工业管理型交换机
分类工业交换机
型号型号 852-1305/000-001
简介

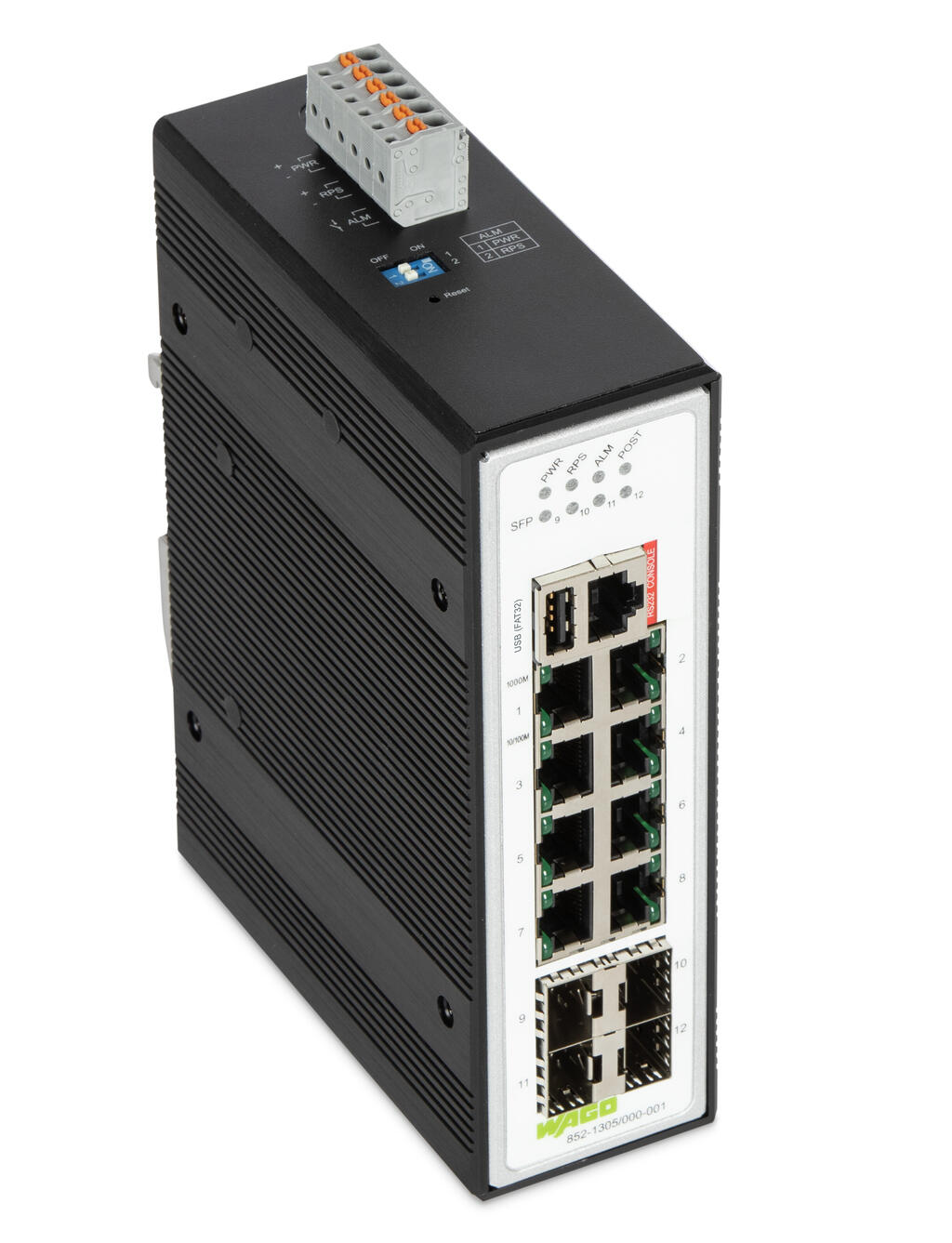

工业交换机: 工业管理型交换机 (852-1305/000-001)
描述
The configurable 852-1305/000-001 Industrial ETHERNET Switch is equipped with eight 10/100/1000BASE-T ports and four 1000BASE-SX/LX SFP ports (SFP modules are available as an option).
Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. These functions, along with extensive ETHERNET switch options, make it ideal for a wide range of applications.
Features:
Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. These functions, along with extensive ETHERNET switch options, make it ideal for a wide range of applications.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Power supply range: 12 … 48 VDC
- Diagnostics via Modbus® and SNMP
- DIP switches to set alarm functions
- Autonegotiation at all 10/100/1000Base-T ports
- Auto‐MDI/MDIX (crossover) at all 10/100/1000Base‐T ports
- IGMP snooping for multicast filtering
- Port configuration, status, statistics
- Port trunking
- SNMP v1/v2c and RMON
- Approval (IEC 61850-3) for the energy market
- Firmware update and switch configuration via USB storage medium
