工业-eco-经济型交换机

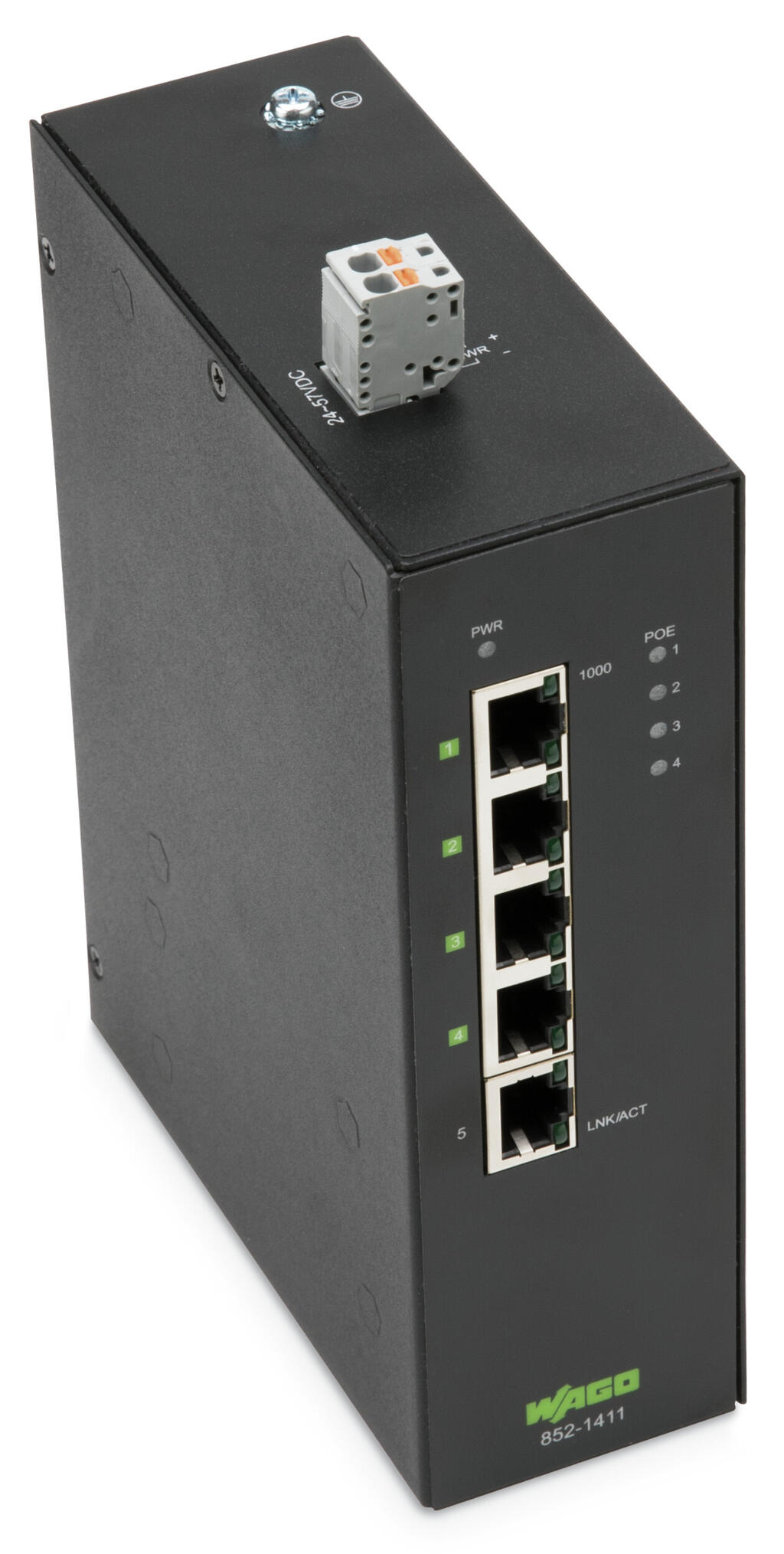

The 852-1411 Switch is an industrial unmanaged ETHERNET switch with 5 Gigabit ETHERNET ports, four of which support Power over Ethernet (PoE+) at 30 W. These 4 PoE+ ports (IEEE 802.3at) can be used simultaneously to power PoE end devices (powered devices). The integrated voltage transformer enables operation with -24 VDC, which is the standard supply voltage in control cabinets.
Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, helping save time and money during commissioning.

Features:

• 5 ETHERNET ports 10/100/1000 Mbit/s Autonegotiation
• 4 PoE+ ports (IEEE 802.3at)
• Front-panel diagnostic LEDs
• Supports Auto-MDI/MDI-X functions
• Full/half-duplex transfer modes for each port
• Store-and-forward switching method
• Integrated address look-up table, supports up to 8000 absolute MAC addresses
• Overvoltage protection
• IEEE 802.3x flow control in full-duplex mode
• Prioritization of PROFINET ETHERNET data packets (EtherType=0x8892) per IEEE802.1p
• DIN-35 rail mounting
