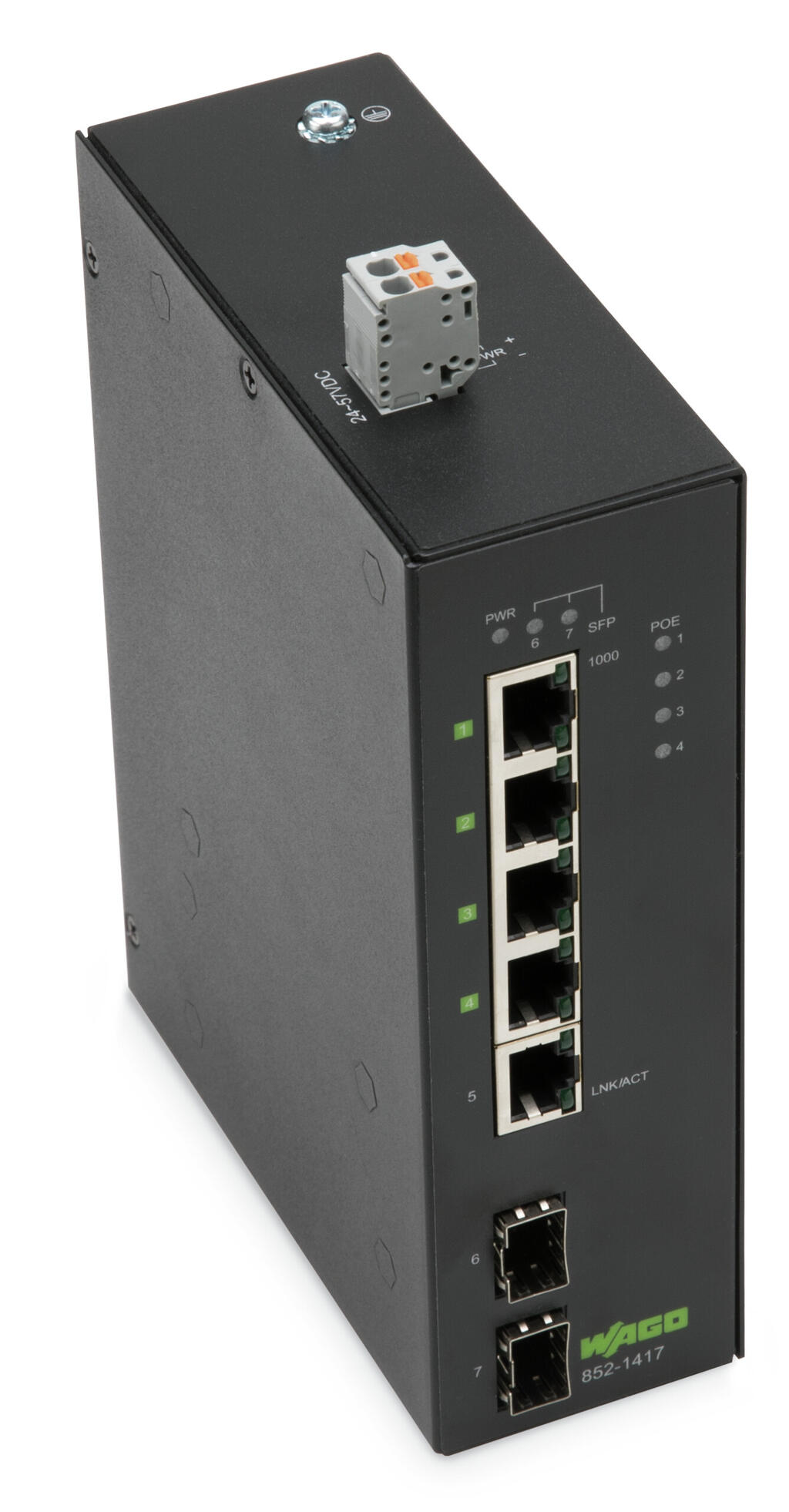

The 852-1417 Switch is an industrial unmanaged ETHERNET switch with 5 Gigabit ETHERNET ports, four of which support Power over Ethernet (PoE+) at 30 W. These 4 PoE+ ports (IEEE 802.3at) can be used simultaneously to power PoE end devices (powered devices). In addition, the switches have two SFP slots (1000BASE modules). The integrated voltage transformer enables operation with -24 VDC, which is the standard supply voltage in control cabinets.
Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, helping save time and money during commissioning.

Features:

• 5 ETHERNET ports 10/100/1000 Mbit/s Autonegotiation
• 4 PoE+ ports (IEEE 802.3at)
• 2 Gigabit/s SFP slots
• Front-panel diagnostic LEDs
• Supports Auto-MDI/MDI-X functions
• Full/half-duplex transfer modes for each port
• Store-and-forward switching method
• Integrated address look-up table, supports up to 8000 absolute MAC addresses
• Overvoltage protection
• IEEE 802.3x flow control in full-duplex mode
• Prioritization of PROFINET ETHERNET data packets (EtherType=0x8892) per IEEE802.1p
• DIN-35 rail mounting
